Python实现位图分割效果：原理与代码解析

Python位图分割代码实现

import cv2
import numpy as np
import matplotlib.pyplot as plt

img = cv2.imread('Fig3.13.jpg', 0)
imgBS = np.zeros_like(img)

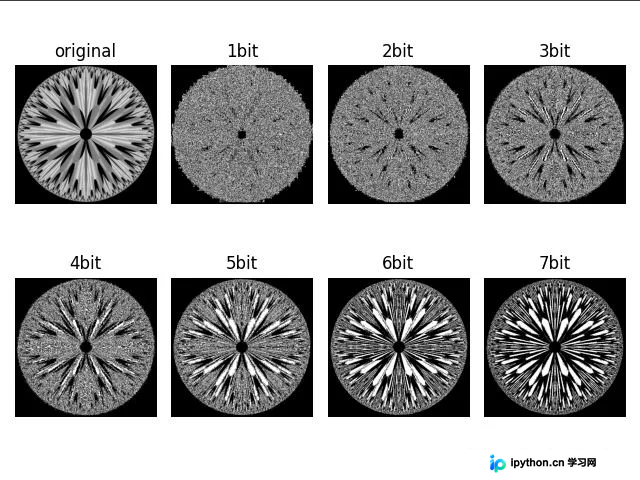

plt.figure("Image")
plt.subplot(2, 4, 1)
plt.imshow(img, cmap='gray')
plt.axis('off')
plt.title('original')

for n in range(1, 8):
    for x in range(img.shape[0]):
        for y in range(img.shape[1]):
            gray = img[x, y] & pow(2, n-1)
            if gray == pow(2, n-1):
                imgBS[x, y] = 255
            else:
                imgBS[x, y] = 0

    plt.subplot(2, 4, n+1)
    plt.imshow(imgBS, cmap='gray')

    plt.axis('off')
    plt.title(str(n) + 'bit')
plt.show()
