Python实现一阶马尔科夫链生成随机DNA序列的完整方法

远山来客

发布时间：2026-10-12| 2人浏览过

原创

本文详细讲解如何利用一阶马尔科夫链在Python中生成随机DNA序列。通过定义碱基转移概率，模拟序列的随机演化过程，并展示如何统计和可视化生成的序列长度分布，适用于序列建模与分析场景。

一阶马尔科夫链原理

在DNA序列生成中，一阶马尔科夫链假设当前碱基类型仅依赖于前一位碱基。状态空间包含四种碱基"A","G","C","T"及终止状态"E"，转移概率定义了下一位碱基的可能性与结束条件。例如，若当前为A，则下一位为A、T、G、C的概率分别为0.25、0.20、0.20、0.20，结束概率为0.15。

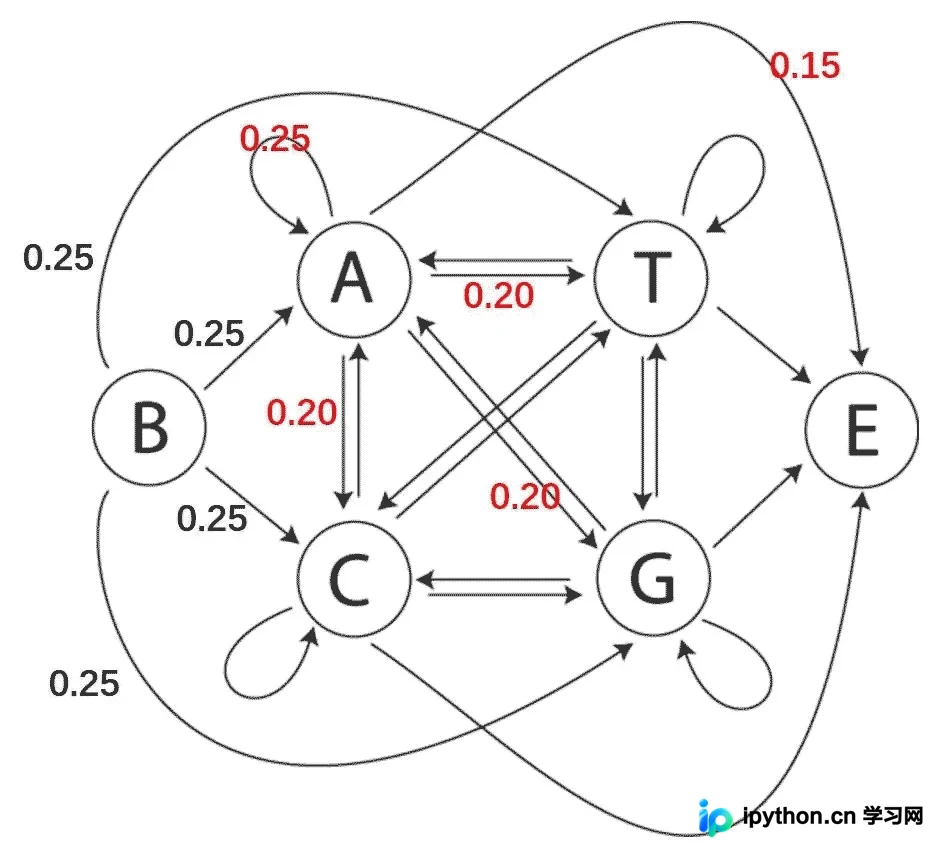

DNA序列的一阶马尔科夫链转移概率图 — 图示展示了各碱基间的转移概率分布及终止状态条件。

代码实现步骤

第1步：配置运行环境

确保系统已安装Python、numpy、random和matplotlib模块。建议在Jupyter Notebook环境中运行，以支持交互式绘图。若需单独执行脚本，可移除%matplotlib notebook魔法命令。

第2步：定义状态与转移矩阵

创建状态空间列表和转移事件名称表，并初始化4x5概率矩阵，每行代表当前碱基，各列对应下一状态（A/G/C/T/E）。矩阵值需保证每行和为1.0以符合概率分布。

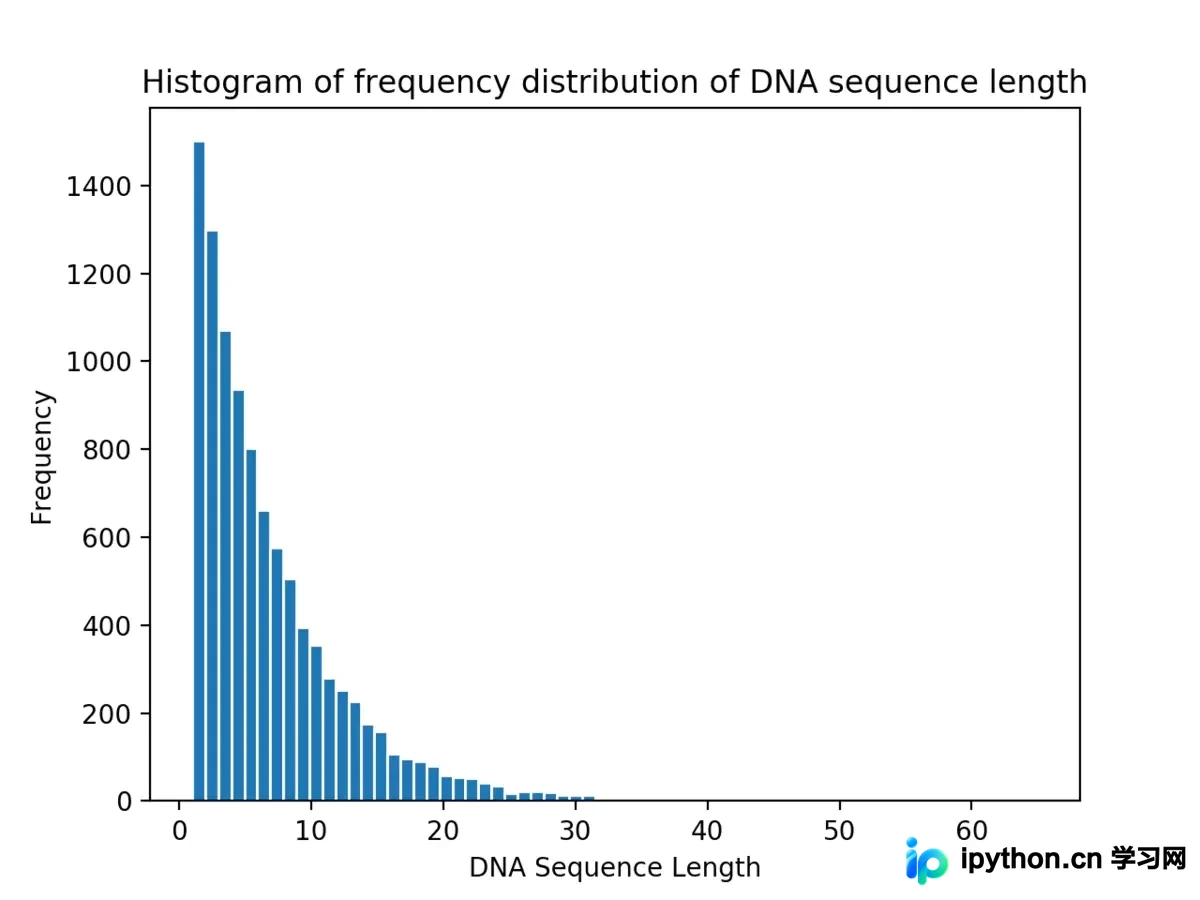

10,000条DNA序列长度分布直方图 — 1万条序列长度分布统计，显示长度为1bp的序列占比最高。

第3步：编写生成函数与逻辑

实现RandomDNAs(Num)函数，接收生成数量参数。函数内循环生成每条序列：随机选择起始碱基，根据转移矩阵逐位采样，直到到达终止状态"E"。记录序列长度至列表，用于后续统计分析。

import numpy
import random
import seaborn as sns
import matplotlib.pyplot as plt

states = ["A","G","C","T","E"]
transitionName = [["AA","AG","AC","AT","AE"],
                  ["GA","GG","GC","GT","GE"],
                  ["CA","CG","CC","CT","CE"],
                  ["TA","TG","TC","TT","TE"],]
transitionMatrix = [[0.25,0.20,0.20,0.20,0.15],
                    [0.20,0.25,0.20,0.20,0.15],
                    [0.20,0.20,0.25,0.20,0.15],
                    [0.20,0.20,0.20,0.25,0.15]]

def RandomDNAs(Num):
    max_len = 0
    i = 0
    Seq = []
    Len = []
    while i != Num:
        Base = ["A","G","C","T"]
        START = random.choice(Base)
        Seq.append(START)
        while START != "E":
            if START == "A":
                change = numpy.random.choice(transitionName[0],p=transitionMatrix[0])
                if change == "AA": START = "A"
                elif change == "AG": START = "G"
                elif change == "AC": START = "C"
                elif change == "AT": START = "T"
                elif change == "AE": START = "E"
            elif START == "G":
                change = numpy.random.choice(transitionName[1],p=transitionMatrix[1])
                if change == "GA": START = "A"
                elif change == "GG": START = "G"
                elif change == "GC": START = "C"
                elif change == "GT": START = "T"
                elif change == "GE": START = "E"
            elif START == "C":
                change = numpy.random.choice(transitionName[2],p=transitionMatrix[2])
                if change == "CA": START = "A"
                elif change == "CG": START = "G"
                elif change == "CC": START = "C"
                elif change == "CT": START = "T"
                elif change == "CE": START = "E"
            elif START == "T":
                change = numpy.random.choice(transitionName[3],p=transitionMatrix[3])
                if change == "TA": START = "A"
                elif change == "TG": START = "G"
                elif change == "TC": START = "C"
                elif change == "TT": START = "T"
                elif change == "TE": START = "E"
            if START != "E":
                Seq.append(START)
        i += 1
        Len.append(len(Seq))
        if len(Seq) > max_len:
            max_len = len(Seq)
        Seq.clear()
    plt.hist(numpy.array(Len), bins=max_len, edgecolor="white")
    plt.xlabel("DNA Sequence Length")
    plt.ylabel("Frequency")
    plt.title("Histogram of frequency distribution of DNA sequence length")
    plt.show()
    print("DNA序列的最大长度为:",max_len)
    print("DNA序列长度的众数为:",max(Len, key=Len.count))
